Sublimation textile calander heat transfer

Sublimation textile calander heat transfer

Drum type: chrome-plated
Heating type: Oil heating
Suitable for: Roll to roll and roll to pieces sublimation fabric printing
Temperature range: 0-260℃
Sublimation speed: Adjustable

US$5800-US$6200

Product Description:

Features

This roll to roll heat transfer machine is ideal for mouse pad, fleece blanket, flags, t-shirts, etc. Available in 220V 1 phase, 220V 3 phase and 380V 3 phase. Heavy duty structure for long-time service.

The automatic blanket correction system uses a motor and photoelectric switches and accurate positioning.

The automatic pneumatic pressure allows you to sublimate not only thick fabric, but also thin fabric. At the same temperature, you can use the pressurization function, and then use a faster speed to transfer the fabric with the same effect.

The high quality torque limiter allows you to adjust the tension of paper easily to get better sublimation result.

The PLC display has languages English and Spanish. The operator can choose the language he likes.

The chrome-plated drum is more durable and anti-stretching.

The machine has 3-color light to indicate you that the status. If the green color is on, it means that it reached desired temperature and is running normally. If the yellow color is on, it means that it is cooling down. If the red right is on, it means problem is happening.

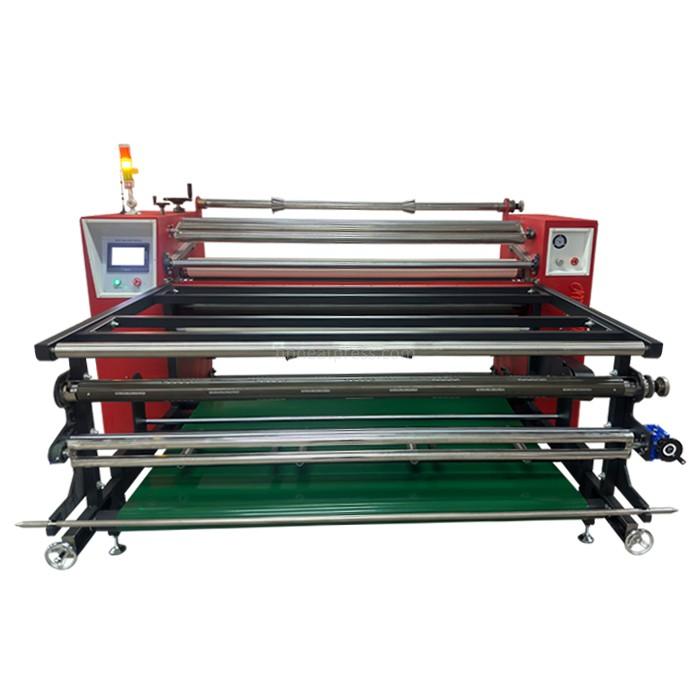

sublimation calender.jpg

Technical parameters

Model	HB21-3H/1150
Drum type	Durable chrome-plated drum
Drum diameter	215mm
Drum width	1300mm ( other widths are available)
Temperature range	0-260℃
Touchscreen control	Yes
Language	English and Espanol
Total power	8.5KW
Heat transfer power	6KW
Automatic shutdown	Yes
Automatic blanket alignment	Yes
Adjustable blanket length	Yes
Safety design	Yes
Heating type	Thermal oil heating
Voltage	220V 1 phase/220V 3 phase/380V 3 phase
Number of air shaft	2
Working way	Roll to roll, roll to pieces, pieces to pieces

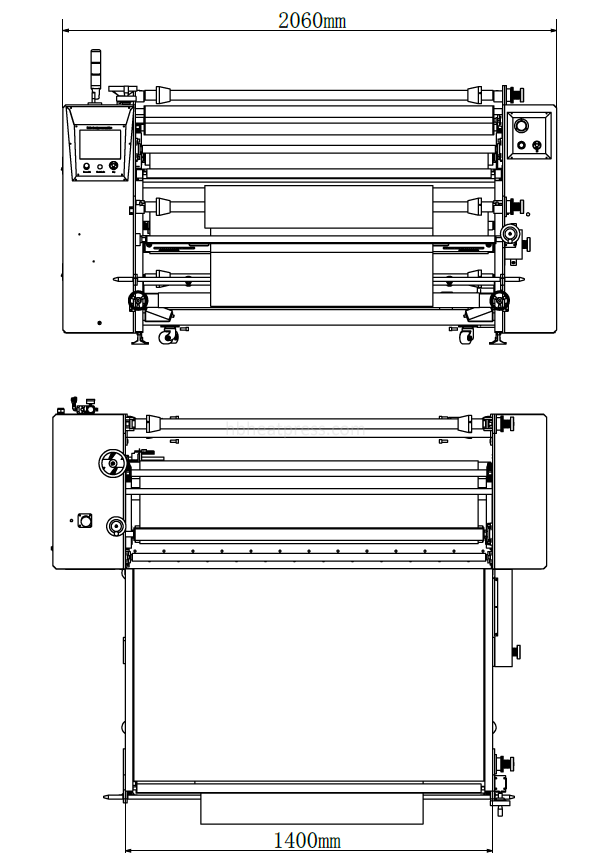

Packing dimension	220x100x158cm
