Sublimation-printing-paper-calender

Features

High-Yield Drum Design:

The integrated belt wraps around 65% of the drum instead of the industry-standard 50%. This increased surface contact maximizes heat and pressure transfer, allowing you to process approximately 7 meters more per hour than traditional worktable configurations.

Wrinkle-Free Entry:

Equipped with a specialized opening roller, the system actively flattens and opens fabric wrinkles before they reach the drum.

This guarantees a perfectly smooth entry and prevents costly alignment errors or printing defects.

Automatic Blanket Alignment:

Continuously tracks and adjusts the blanket position to prevent drifting, extending the lifespan of your components.

• Continuous Monitoring: Photoelectric sensors constantly track the edges of the blanket to detect the slightest deviation from the center line.

• Real-Time Adjustment: If drifting is detected, the sensors automatically activate the motor and steering roller working to nudge the blanket back into alignment without stopping the machine.

• Component Protection: Preventing the blanket from drifting stops it from rubbing against the machine frame, which avoids frayed edges and uneven wear.

Automatic Pneumatic Pressure:

Delivers consistent, uniform pressure across the entire fabric width without requiring manual calibration.

Automatic Shutdown:

Safely powers down the machine under specific conditions, protecting your investment and reducing energy waste.

Flawless Thermal Stability:

Featuring a premium rotor flange conductive slip ring, the system maintains a seamless electrical connection to eliminate temperature fluctuations entirely. Your fabric receives uniform heat from start to finish.

Technical parameters

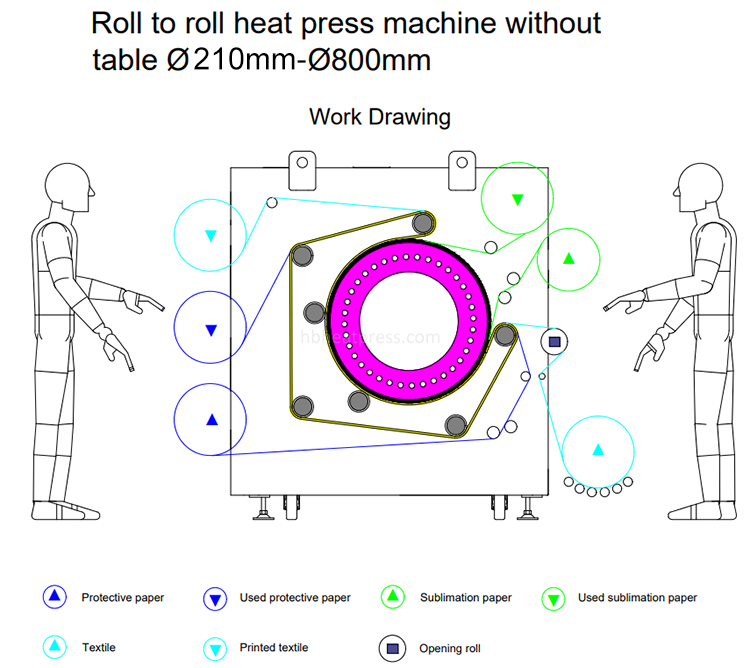

Working flow

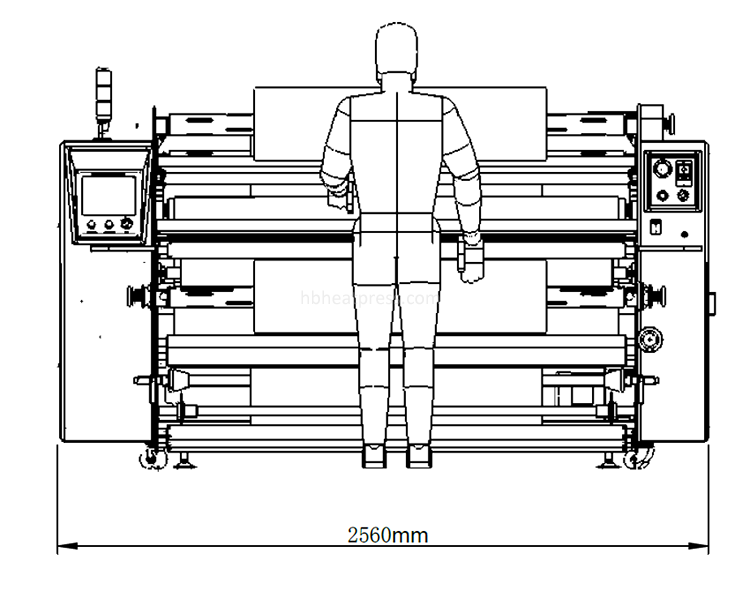

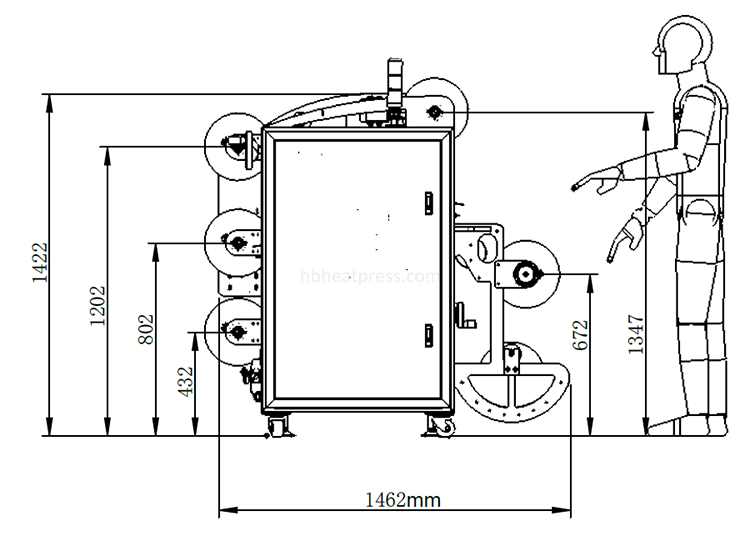

Sublimation calender dimension

Sublimation calender package
